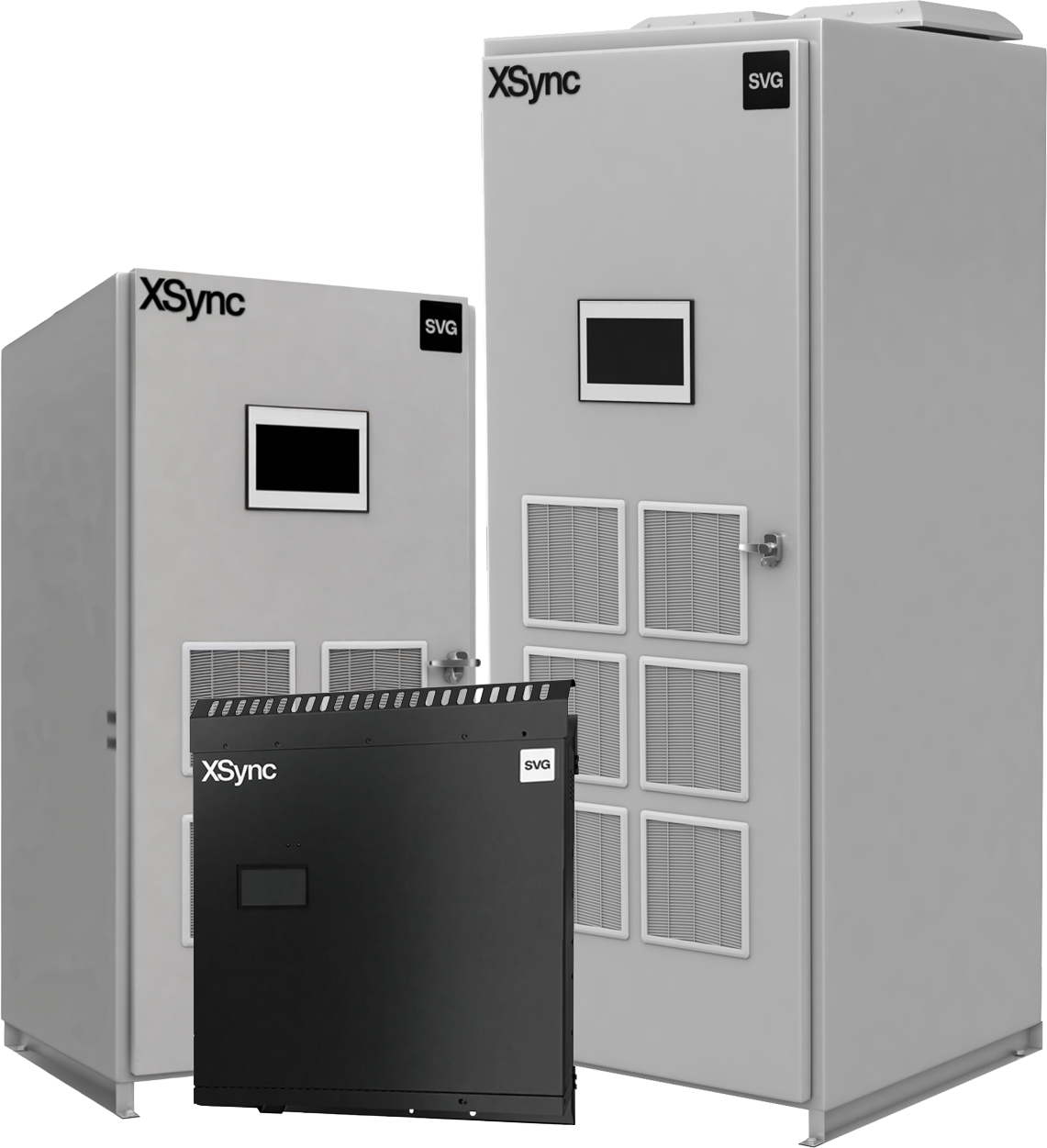

Static Var Generators
Provide real-time dynamic power factor correction and voltage stability
What is Reactive Power?
In a perfect electrical system, voltage and current waveforms follow a smooth sine wave and move in perfect synchronization. However, many common industrial and commercial devices—such as electric motors, pumps, air conditioning compressors, and transformers—rely on electromagnetism to operate. These devices create inductive loads that delay the current, causing it to lag behind the voltage. This misalignment creates reactive power—unproductive energy that sloshes back and forth in the system, causing voltage drops, reduced efficiency, and costly power factor penalties from utilities.
Advanced Power Factor Correction and Voltage Stability
XSync dynamic Static Var Generator (SVG) solutions utilise advanced SiC MOSFET technology for real-time, precise reactive power compensation to improve power factor, provide reliable voltage stabilisation in fluctuating conditions, and meet grid compliance requirements. Built for modern, fast-changing load environments, XSync SVG units deliver higher efficiency, lower power losses, protect sensitive equipment, and reduce operational costs.
How It Works
XSync SVG units work by dynamically injecting or absorbing reactive power into the electrical network in real time. Unlike traditional capacitor banks that operate in fixed steps, SVG systems use advanced power electronics to deliver smooth and precise compensation based on immediate system demands. This ensures stable voltage levels, reduces power losses, improves equipment performance, and keeps your site compliant with grid power quality standards.
SVG is the ideal solution for fast-changing load environments where poor power factor and voltage fluctuations can disrupt operations.
Select build
Rated Capacity (kVAr)
XSVG 10W|20W|30W
405x128x511
XSVG10W|20W|30W
10kVAr|20kVAr|30kVAr
405x128x511
No
20kg
400V +/- 20% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<60db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
11cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring Available on Request
EN IEC 61000; EN IEC 62477
IP20 Standard (higher IP’s including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL 7035 Grey
3-Years Standard (Longer Warranties Available on Request)
XSVG50W
540x100x572
XSVG50W
50kVAr
540x100x572
No
26kgs
400V +/- 20% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<60db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
11cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring Available on Request
EN IEC 61000; EN IEC 62477
IP20 Standard (higher IP’s including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL 7035 Grey
3-Years Standard (Longer Warranties Available on Request)
XSVG75W
540x100x572
XSVG75W
75kVAr
540x100x572
Yes
26kgs
400V +/- 20% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<60db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
11cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring Available on Request
EN IEC 61000; EN IEC 62477
IP20 Standard (higher IP’s including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL 7035 Grey
3-Years Standard (Longer Warranties Available on Request)
XSVG100W
540x100x572
XSVG100W
100kVAr
540x100x572
Yes
27kgs
400V +/- 20% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<60db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
11cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring Available on Request
EN IEC 61000; EN IEC 62477
IP20 Standard (higher IP’s including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL 7035 Grey
3-Years Standard (Longer Warranties Available on Request)

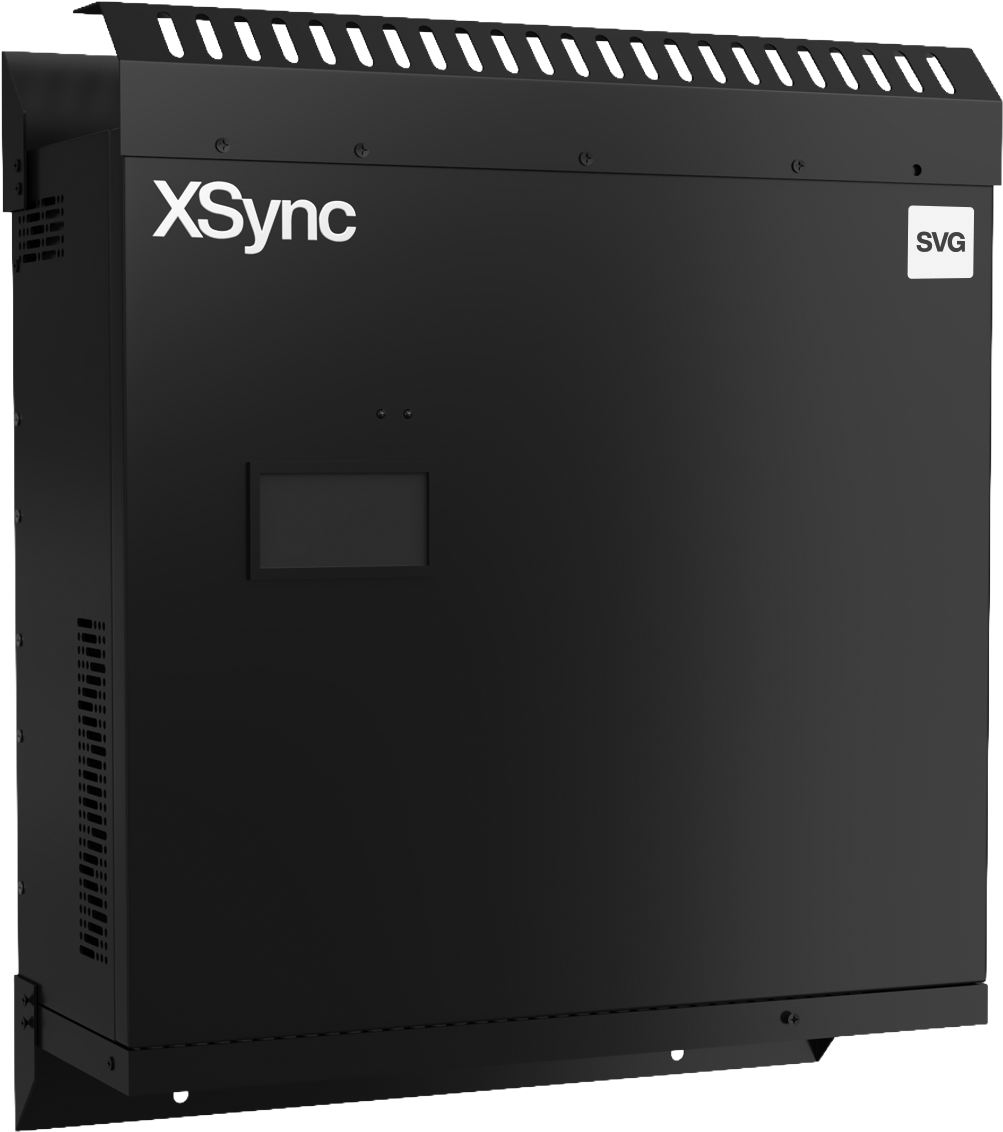

SVG Wall Mount Units
SiC MOSFET Technology providing higher efficiency and lower losses.
Stepless reactive power control – Delivers smooth compensation with complete inductive and capacitive range available.
Multiple functions – Handles reactive power compensation, three‑phase unbalance as well as harmonic filtering to the 13th harmonic order.
No resonant issues – As it’s capacitor‑free and actively compensated, there’s minimal risk of resonance.
Standard certified – Meets IEC 61000 & 62477; CE/TUV test reports; backed by 36‑month warranty.
Adaptable installation – Parallel capability for boosting capacity beyond a single unit.
480V & 690V options available on request
Wall‑mount format – Compact units ranging from 10kVAr up to 100kVAr
Fast response times – Full response in <10ms, dynamic within <50us, ideal for rapidly changing loads.
High efficiency, low loss – Offers >99% efficiency; power losses ≤1%.
Protection & communication – Offers 16 protection features
Long lifetime, low maintenance – MTBF >120,000h (approx. 14+ years); minimal upkeep required.
Ideal for dynamic loads – Perfect for welding equipment, cranes, elevators, renewables, data centres, industries with fluctuating reactive power needs.
Rated Capacity (kVAr)

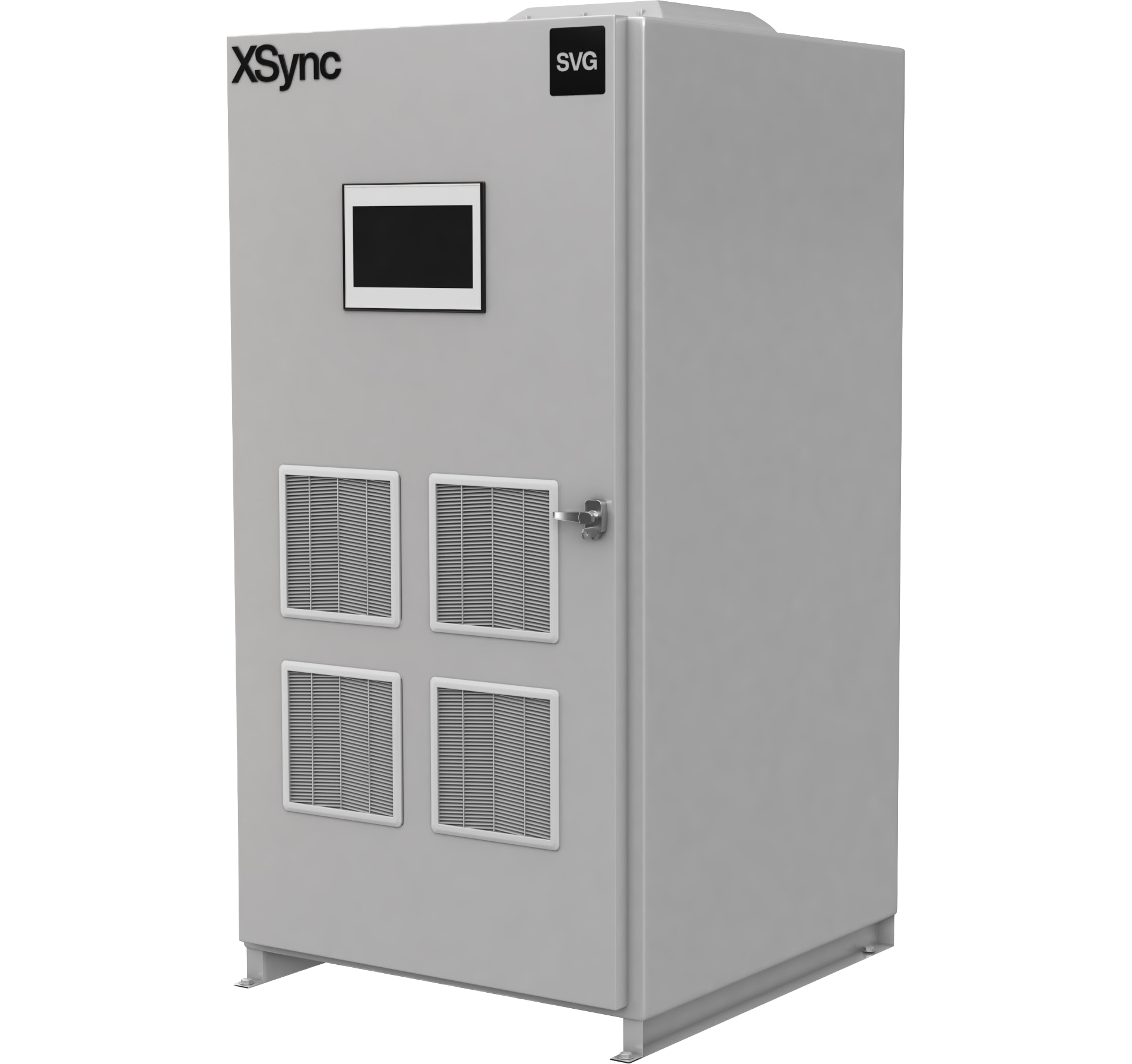

SiC SVG 1570
1575x700x800
XSiC-SVG-1570F
50-400kVAr
4
1575x700x800
230-330kgs
50kVAr/75kVAr/100kVAr
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥ 99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
25 cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring (WiFi and 4G) Optional
EN IEC 61000; EN IEC 62477
IP30 Standard (higher IP’s including IP54 and IP56 available on request)
-10~50°C
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
Choice of Colours
3-Years Standard (Longer Warranties Available on Request)

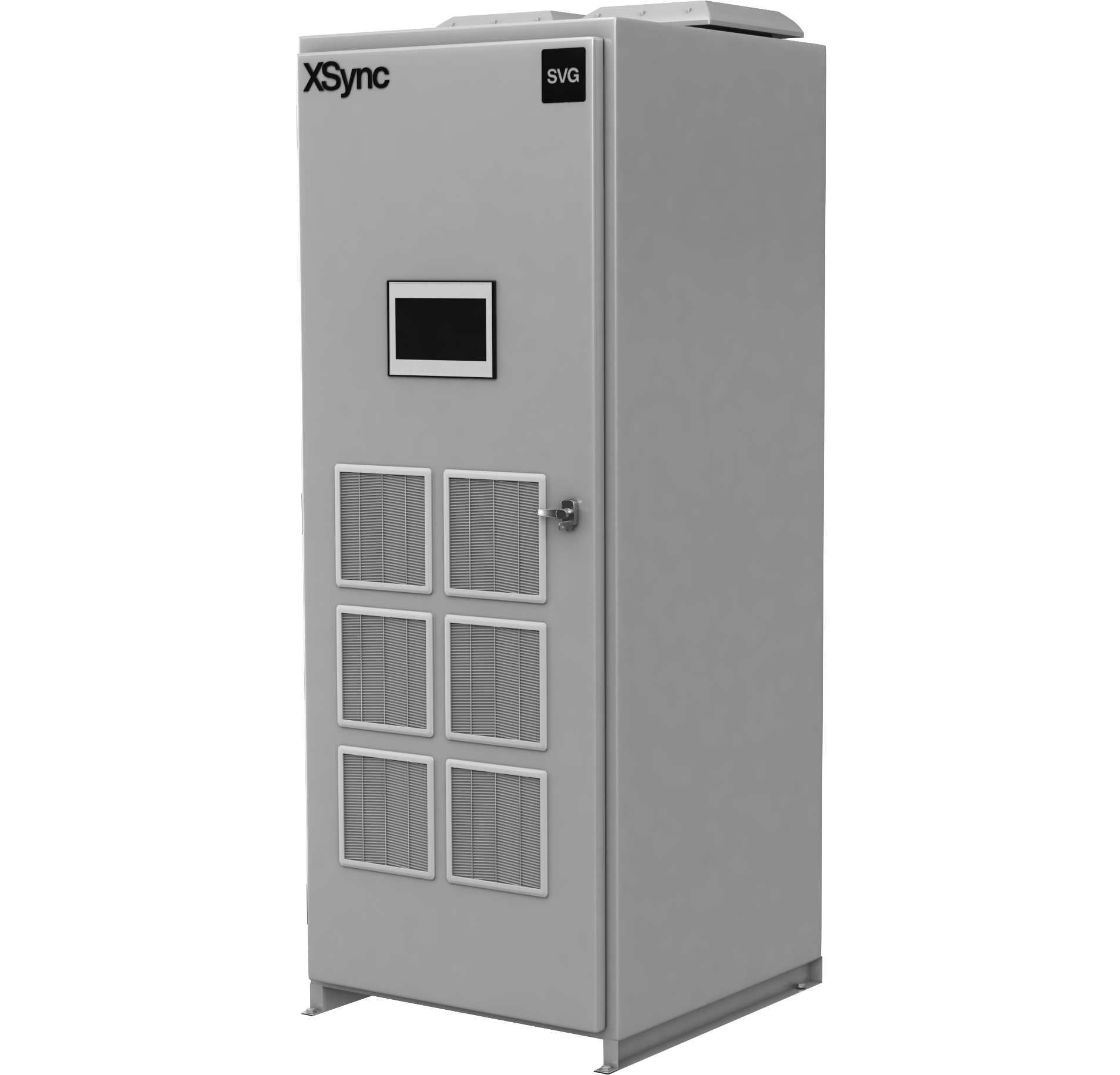

SiC SVG 2070
2075x700x800
XSiC-SVG-2070F
450-600kVAr
6
2075x700x800
425-475kgs
50kVAr/75kVAr/100kVAr
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 13th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥ 99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
25 cm Touchscreen Display
11.25W per kVAr
Cloud Based Monitoring (WiFi and 4G) Optional
EN IEC 61000; EN IEC 62477
IP30 Standard (higher IP’s including IP54 and IP56 available on request)
-10~50°C
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
Choice of Colours
3-Years Standard (Longer Warranties Available on Request)

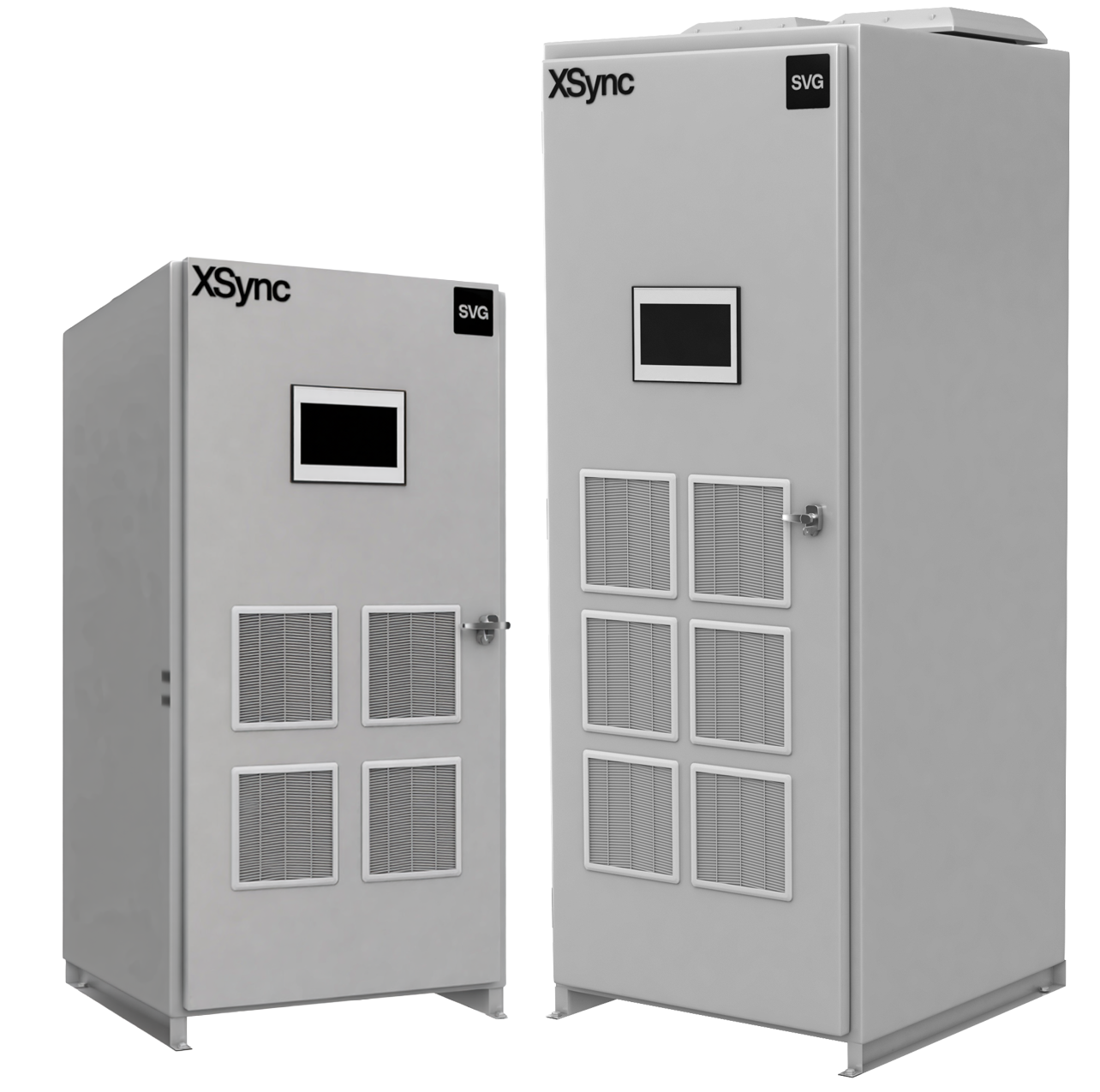

SVG Free Standing Units
High-capacity solutions customised for industrial facilities, data centres, hospitals, and renewable energy plants.
SiC MOSFET Technology providing higher efficiency and lower losses.
IP30, IP54, and IP56 protection options for harsh environments
Optional panel-mounted air conditioners for outdoor installations
Intelligent air cooling with automatic thermostat control.
3 & 4 wire options available
Choice of colour
480V & 690V options available on request
Reactive Power Range: 50kVAr to 600kVAr per cabinet (parallel cabinets for larger capacities)
Intelligent air cooling with automatic speed control
Custom cabinet colours and top/bottom cable entry options
Surge Protection Device (SPD) as an option.
Low system losses at less than 1% of system rating (kW)
Long lifetime, low maintenance – MTBF >120,000h (approx. 14+ years); minimal upkeep needed.
