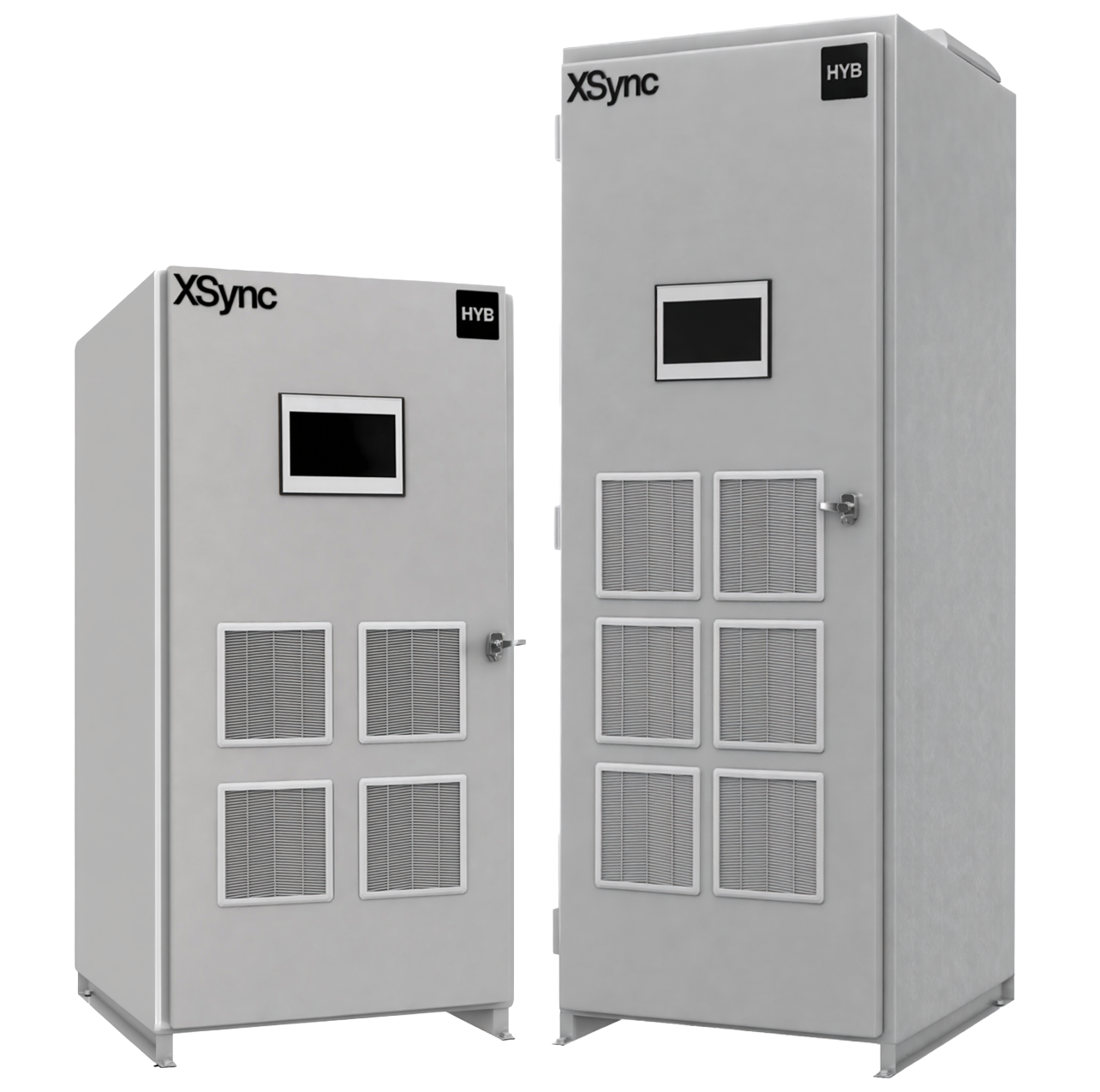

Hybrid Systems
Combined harmonic filtering and reactive power control in one system
Hybrid (HYB) Solutions
XSync Hybrid solutions seamlessly integrate our industry-leading Active Harmonic Filters (AHF) and Static Var Generators (SVG) into a single, space-efficient cabinet – delivering a powerful, all-in-one approach to advanced power quality management.
Engineered for sites that demand both harmonic mitigation and dynamic reactive power control, XSync Hybrids are fully customisable to your load profile, with flexible configurations to meet even the most complex requirements. This unified design not only enhances electrical system performance but also significantly reduces installation costs, footprint, and long-term maintenance demands.
By combining the full capabilities of both XSync AHF and SVG technologies, Hybrid units deliver comprehensive, intelligent correction across your network – resolving multiple power quality challenges in one smart, scalable solution.
Select build
Current Rating

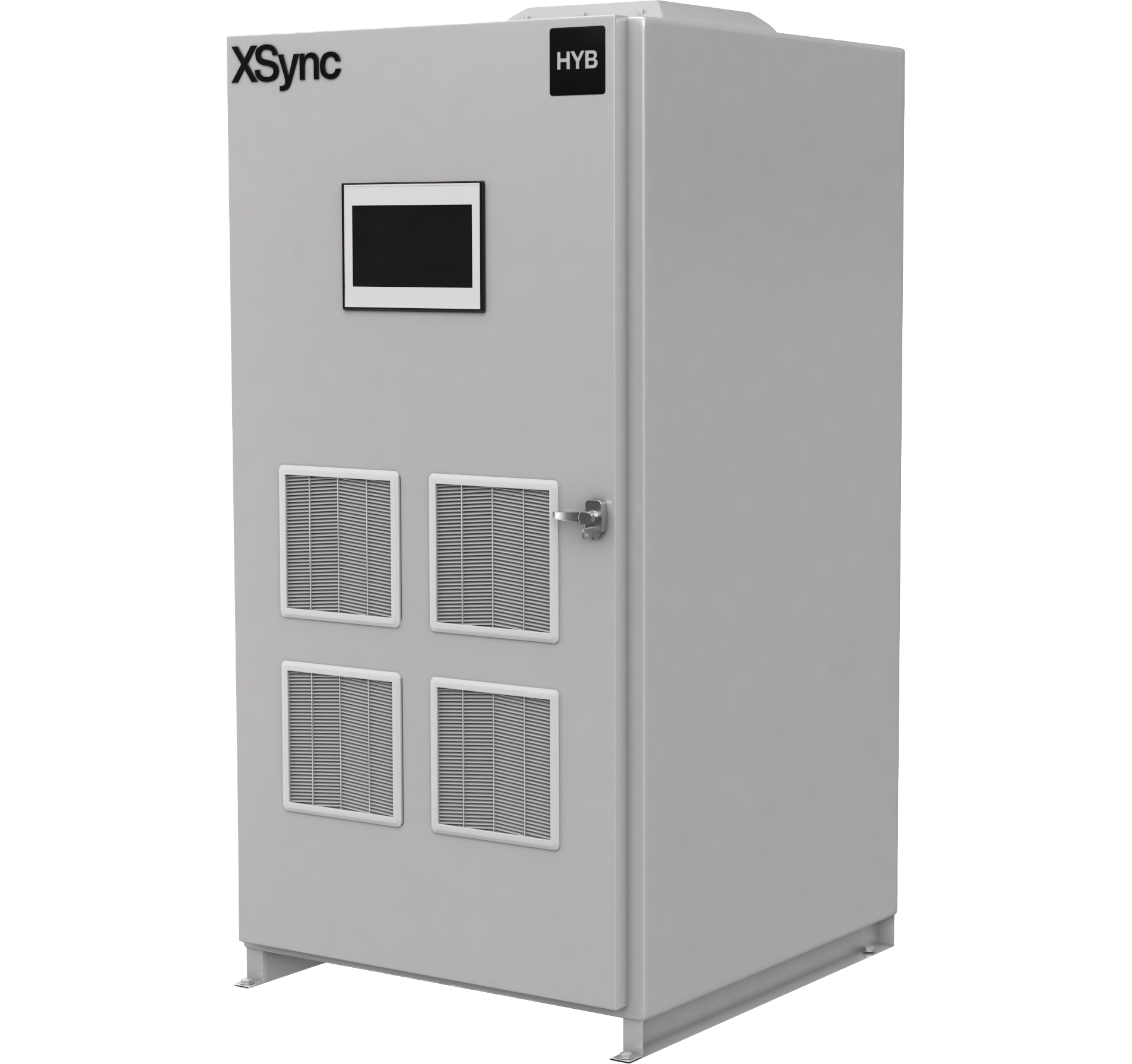

SiC HYB 1570
1575x700x800
Any combination of up to 4 AHF and/or SVG modules in a single cabinet to a maximum nominal current rating of 600A.
50A, 75A, 100A and 150A
50kVAr, 75kVAr and 100kVAr

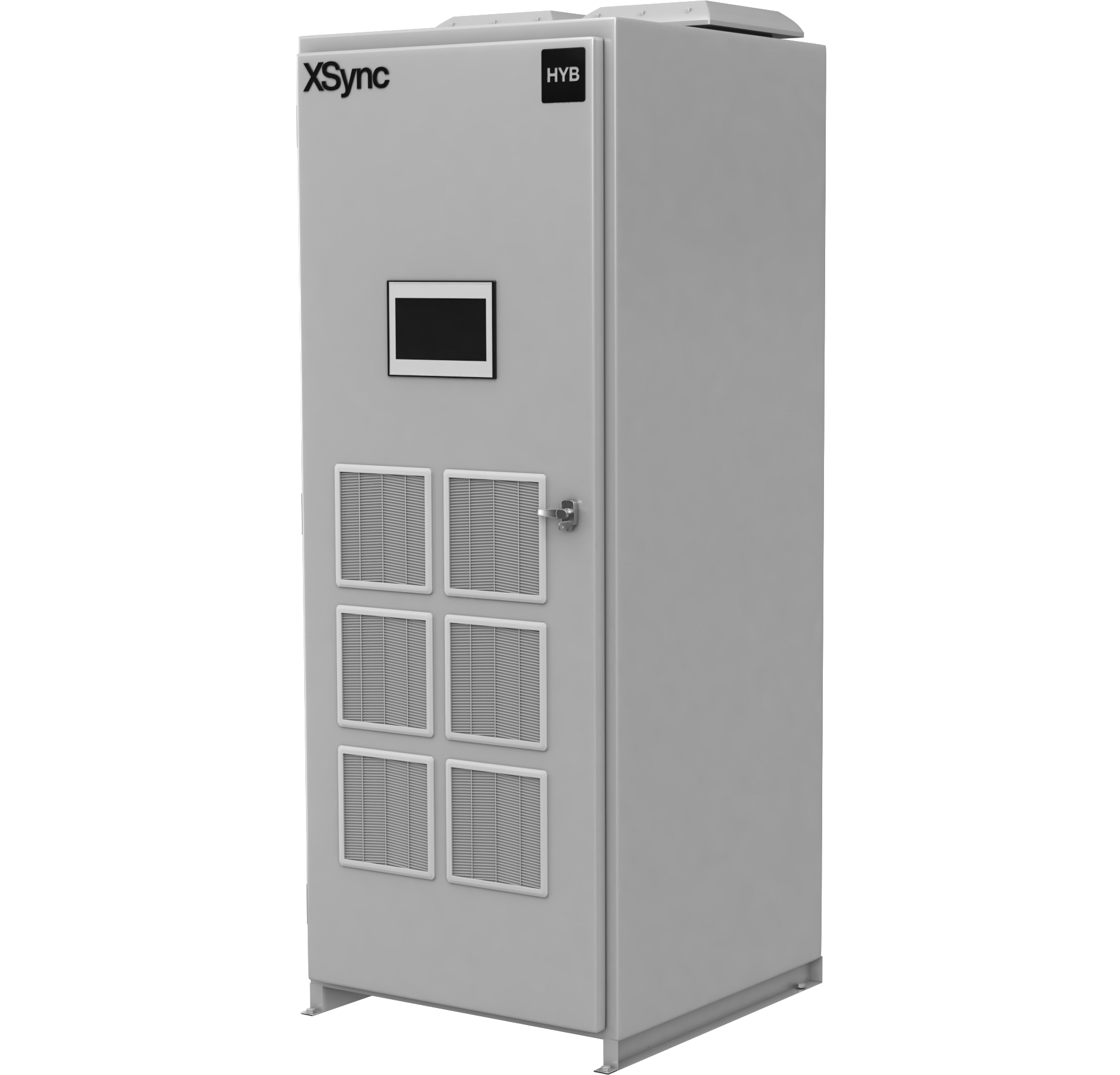

SiC HYB 2070
2070x700x800
Any combination of up to 6 AHF and/or SVG modules in a single cabinet to a maximum nominal current rating of 900A.
50A, 75A, 100A and 150A
50kVAr, 75kVAr and 100kVAr
Key Benefits
- Combines AHF and SVG in a single cabinet for comprehensive power management.
- Provides real-time harmonic mitigation and reactive power compensation, ensuring optimal system performance at all times.
- Reduces energy costs and minimises carbon footprints, supporting sustainability goals.
- Saves valuable space and simplifies installation, making it ideal for sites with space or infrastructure constraints.
