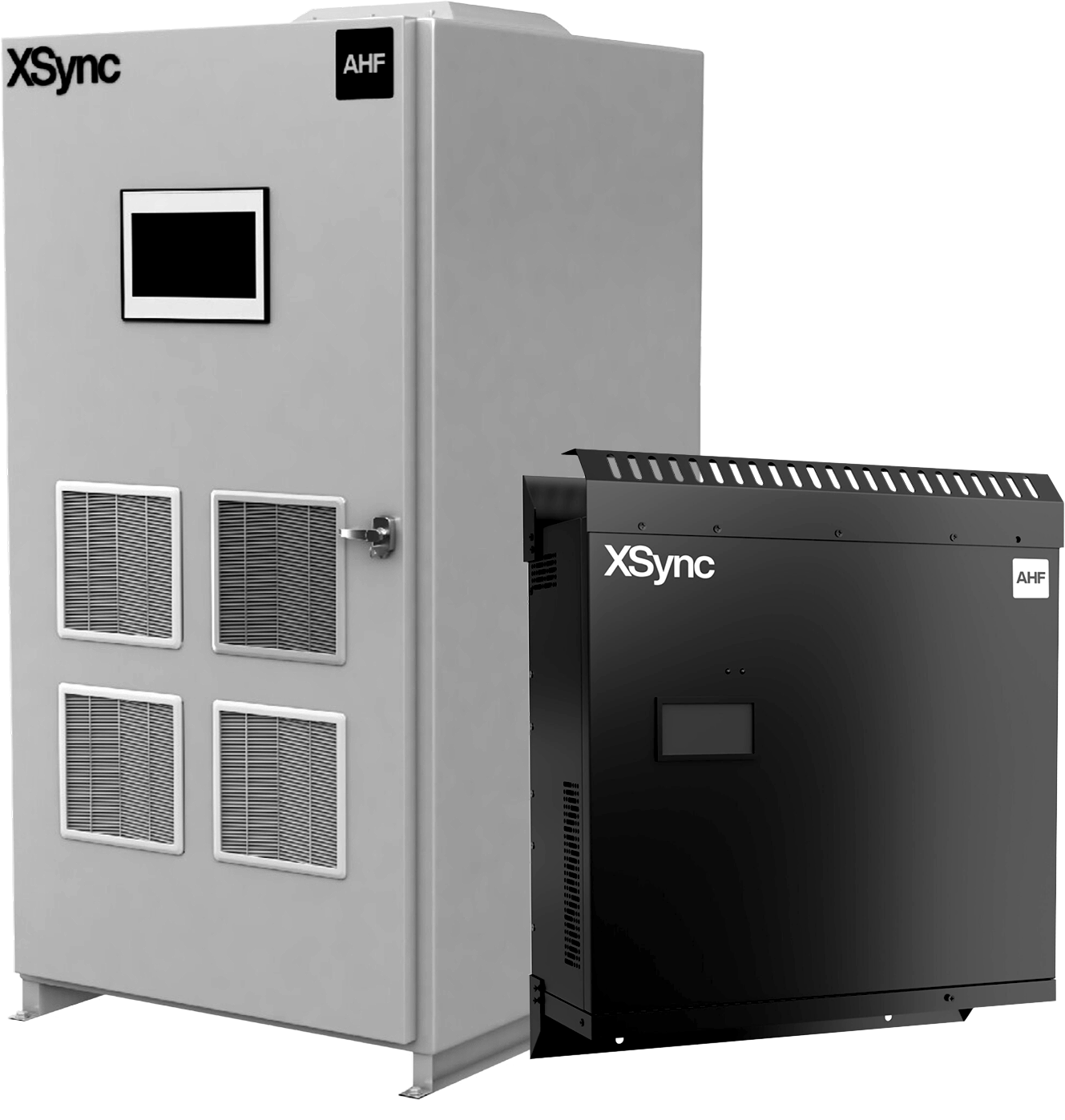

Active Harmonic Filters
Eliminate harmful electrical distortions to protect sensitive equipment and maintain stable, reliable power quality in high-demand environments.
What Are Harmonic Currents and Voltages?
In a perfect electrical system, voltage and current waveforms follow a smooth sine wave at a fundamental frequency (e.g., 50Hz in Australia). However, modern electrical equipment such as Variable Speed Drives (VSDs), LED lighting. computers, and uninterruptible power supplies (UPS) don't draw power smoothly. These devices create non-linear loads and introduce unwanted electrical noise, known as harmonics-distortions in the current and voltage
Select build
Rated capacity (Amp)

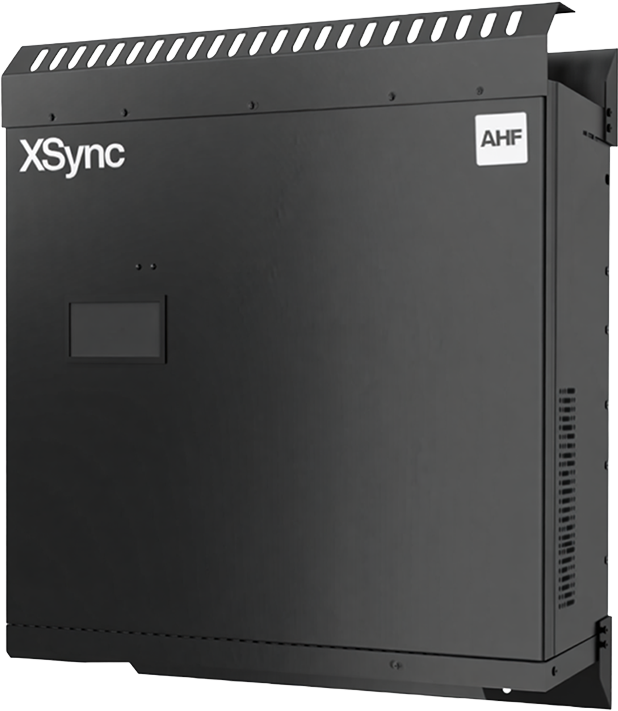

XSync AHF Wall Mounted XSiCAHF
405x128x511
XSiCAHF-20W | XSiCAHF-30W | XSiCAHF-50W
20 | 30 | 50
405x128x511
20kgs
150H
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd ~ 49th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
>99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
Modbus
Modbus RTU, Modbus TCP
11 cm touchscreen display
7.5W per AMP
Cloud Based Monitoring Available on Request (WiFi and 4G)
EN IEC 61000; EN IEC 62477
IP 20 Standard (higher IP’s including IP54 and IP56 available on request
-10~50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL7035 Grey
3-Years Standard (Longer Warranties Available on Request)
XSync AHF Wall Mounted XSiCAHF
540x100x572
XSiCAHF-75W | XSiCAHF-100W | XSiCAHF-150W
75 | 100 | 150
540x100x572
29kgs
250H
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd ~ 49th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
>99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
Modbus
Modbus RTU, Modbus TCP
11 cm touchscreen display
7.5W per AMP
Cloud Based Monitoring Available on Request (WiFi and 4G)
EN IEC 61000; EN IEC 62477
IP 20 Standard (higher IP’s including IP54 and IP56 available on request
-10~50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
RAL7035 Grey
3-Years Standard (Longer Warranties Available on Request)

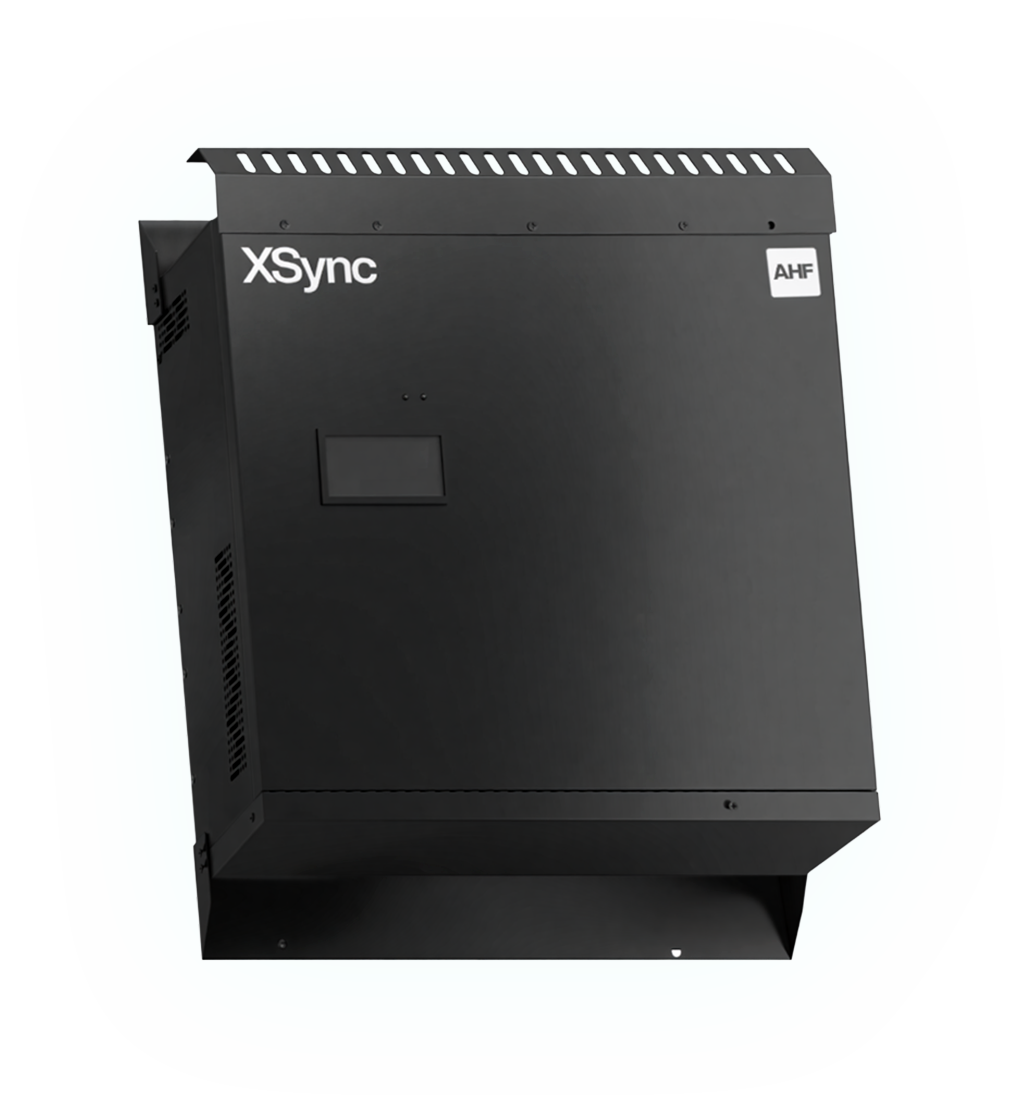

Active Harmonic Filter Wall-Mount Units
Compact, space-saving design - ideal for installations with limited floor space. Can be paralleled for larger capacity
Rated voltage and frequency - Supports 400-690V
Harmonic filtering performance - Targets harmonics from 3rd to 51st order, achieving total harmonic current distortion (TH Di) under 5%, with filtering rates up to 98%
Core technologies - Utilises a 3-level neutral-point-clamped (N PC) IGBT inverter, high-speed DSP + FFT for fast detection and compensation (full response <10ms) with 20kHz switching frequency
Multi-function support - Provides harmonic mitigation, reactive power correction (leading/lagging), and three-phase imbalance balancing
High efficiency – Maintains ≥99% efficiency with power loss ≤1%; stable operation avoids resonance issues
Protection & communication - Offers 16 protection features
Standards compliance - Built to I EC61000 / 62477 standards with 3-year warranty
Scalable installation options - Can be wall-mounted as standalone units or linked together for higher capacities; alternatively integrated into floor-standing cabinets
Ideal applications - Suited to small industrial setups, commercial buildings, data centres with limited space, and renewable energy systems
Why choose a wall-mounted cabinet
Superior space efficiency - Frees up floor area with vertical mounting.
Plug-and-play simplicity - Quick, minimal-complexity installation.
Robust compensation performance - Delivers fast, real-time harmonic and reactive correction with high reliability.
400V-690V options available on request
Active Harmonic Filter Wall-Mount Units
- SiC MOSFET Technology providing higher efficiency and lower losses.
- Wall-mount format - Compact units ranging from 20 Amp to 150 Amp
- Harmonic filtering performance – Targets harmonics from 3rd to 49th order, achieving total harmonic current distortion (THDi) under 5%
- Fast response times – Full response in <10ms, dynamic within <50us, ideal for rapidly changing loads.
- Multi‑function support – Provides harmonic mitigation, reactive power correction (leading/lagging), and three‑phase imbalance balancing
- High efficiency – Maintains ≥99% efficiency with power loss ≤1%; stable operation avoids resonance issues
- Robust protection & comms – Includes protections (OV/OC/OT etc.) and supports Modbus, RS‑485 and optional Ethernet.
- Standards compliance – Built to IEC61000 / 62477 standards with 3-year warranty
- Scalable installation options – Can be wall-mounted as standalone units or linked together for higher capacities; alternatively integrated into floor‑standing cabinets
- Long lifetime, low maintenance – MTBF >120,000h (approx. 14+ years); minimal upkeep needed.
- Ideal applications – Suited to small industrial setups, commercial buildings, data centres with limited space, and renewable energy systems
- 480V & 690V options available on request
Rated capacity (Amp)

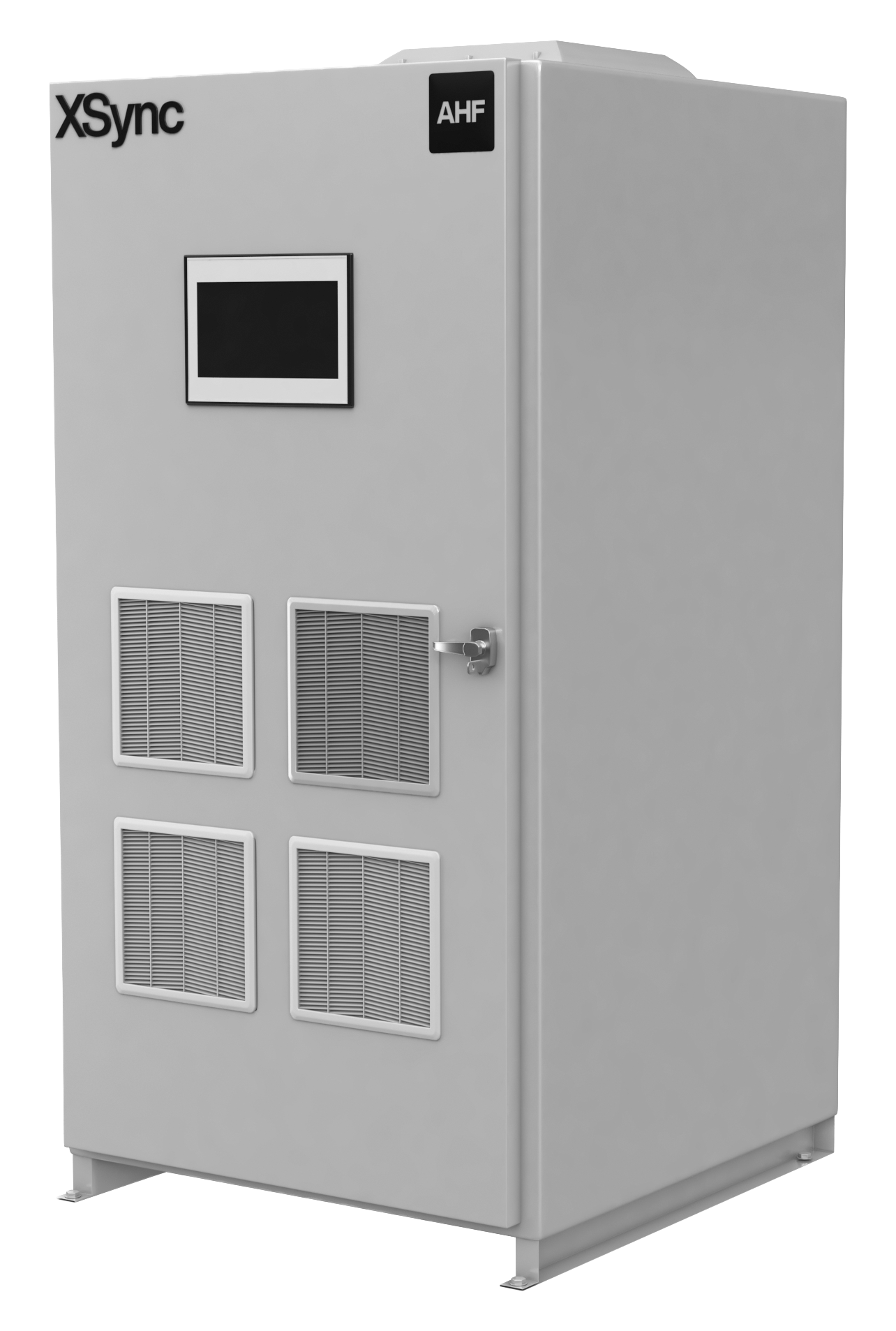

XAHF1570
1576x700x800
XSiC-AHF-1570F
50-600A
4
1576x700x800
230-330kgs
50A/75A/100A/150A
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 49th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
25 cm Touchscreen Display
7.5W per 1A
Cloud Based Monitoring (WiFi and 4G) Optional
EN IEC 61000; EN IEC 62477
IP30 Standard (Higher IP’s Including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
Choice of Colours
3-Years Standard (Longer Warranties Available on Request)

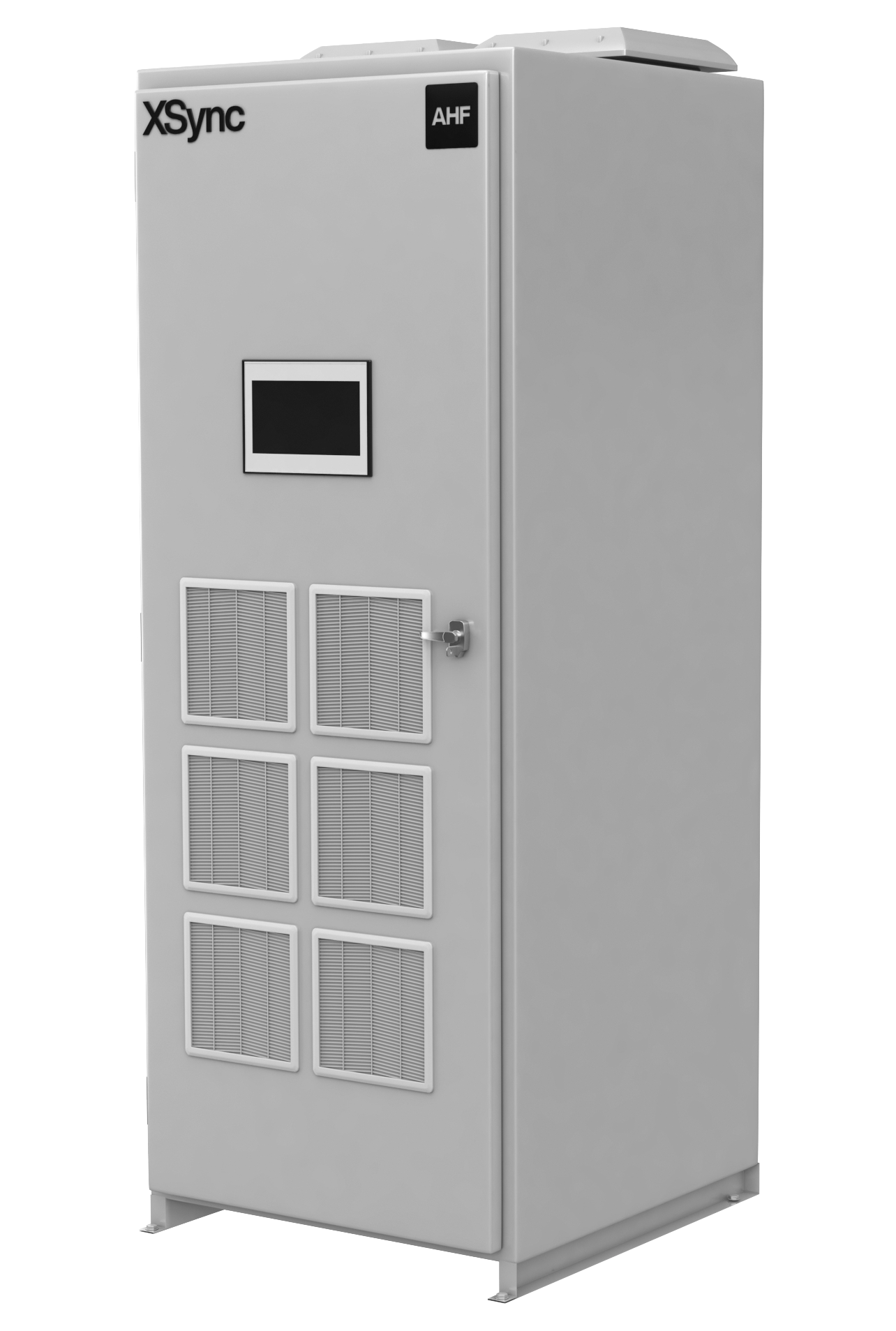

XAHF2070
2075x700x800
XSiC-AHF-2070F
650-900A
6
2075x700x800
425-475kgs
50A/75A/100A/150A
400V +/- 15% (Other Voltages Available on Request)
50Hz/60Hz (Range: 45Hz-62.5Hz)
3-Wire / 4-Wire
3rd to 49th (max. 10 harmonic orders selectable per module)
Complete Inductive and Capacitive Range Available
100% Imbalance Correction
Over-Voltage Protection, Under-Voltage Protection, Short-Circuit Protection, Inverter Bridge Inverse Protection and Over-Compensation Protection
50/5 ~ 6000/5 (>10VA Recommended)
≥99%
<65db
50us
<10ms
<90kHz
SiC MOSFET
Unlimited
RS485 & LAN Port
Modbus RTU, Modbus TCP
25 cm Touchscreen Display
7.5W per 1A
Cloud Based Monitoring (WiFi and 4G) Optional
EN IEC 61000; EN IEC 62477
IP30 Standard (Higher IP’s Including IP54 and IP56 Available on Request)
-10°C to 50°C
5% to 95% Non-Condensing
No derating up to 2000 m. Above 2000 m, output power derates by 1% per additional 100 m.
Choice of Colours
3-Years Standard (Longer Warranties Available on Request)

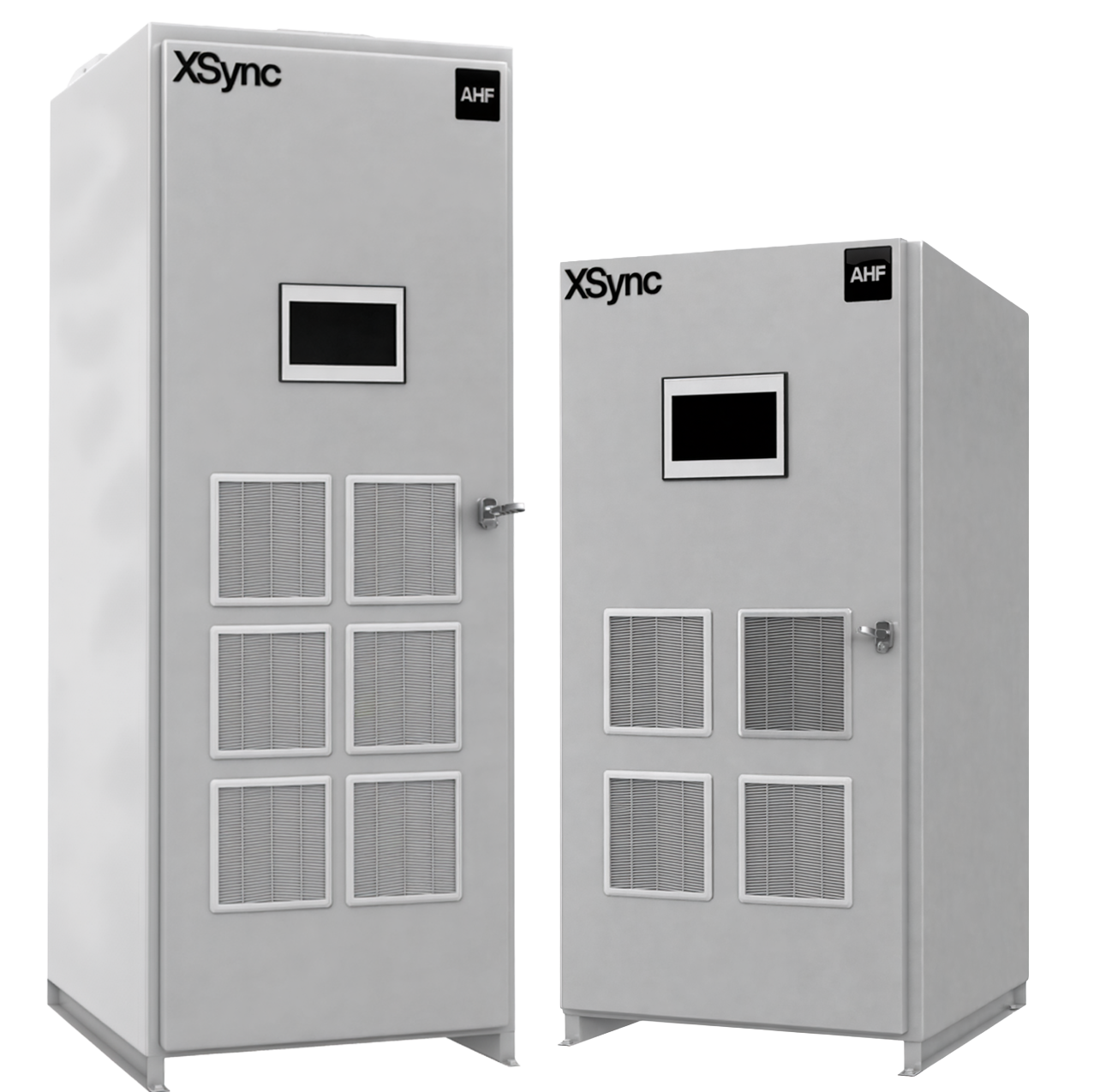

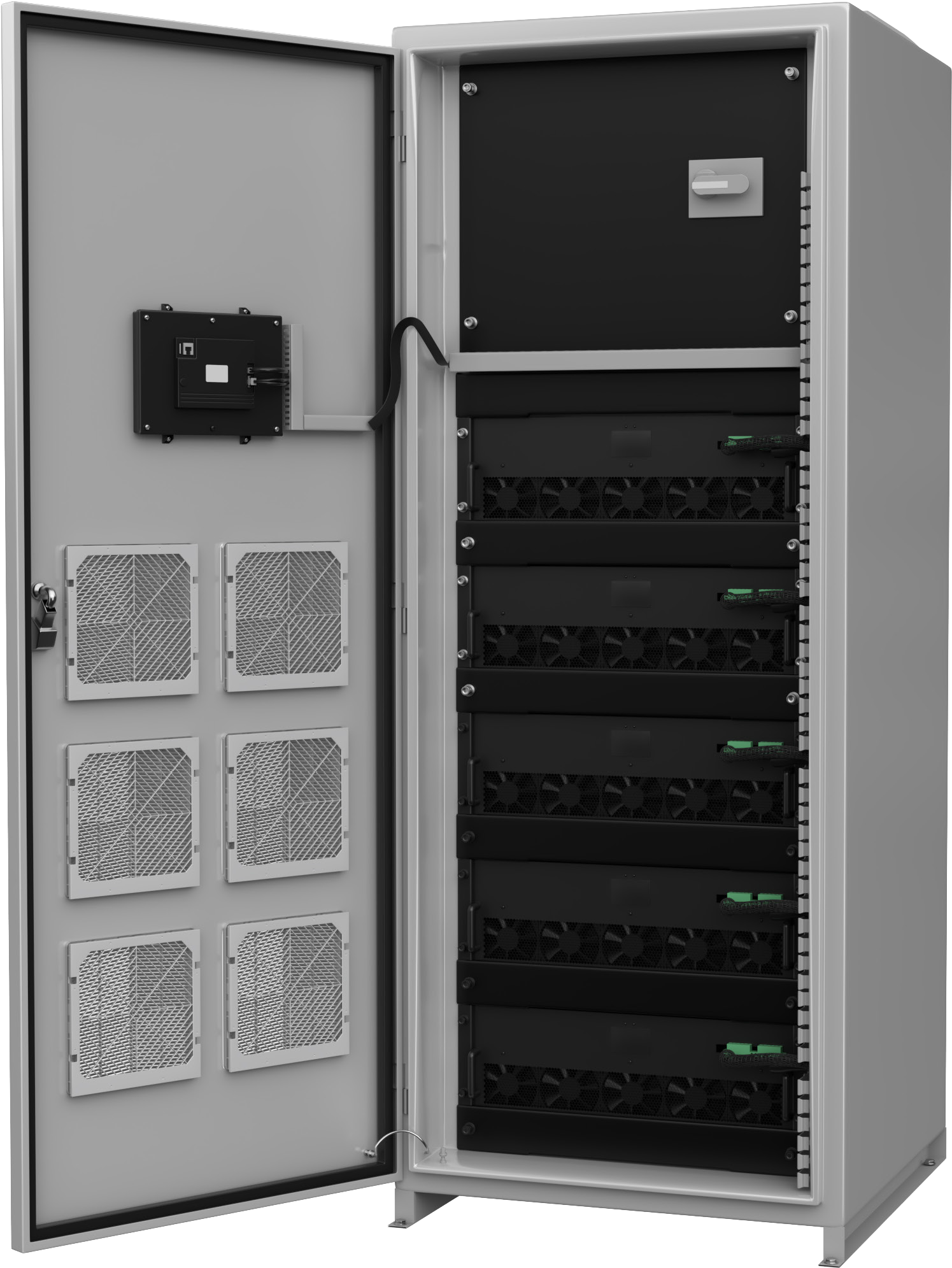

Active Harmonic Filter Free Standing Units
SiC MOSFET Technology providing higher efficiency and lower losses.
Current Ratings: 50A to 900A in a single cabinet. (cabinets can be installed in parallel for large ratings)
Intelligent air cooling with automatic thermostat control.
Surge Protection Device (SPD) as an option.
Low system losses at less than 1% of system rating (kW)
Top or bottom cable entry.
Long lifetime, low maintenance – MTBF >120,000h (approx. 14+ years); minimal upkeep needed.
Multiple functions – Handles reactive power compensation, three‑phase unbalance as well as harmonic filtering to the 49th harmonic order.
High-capacity solutions for industrial and commercial sites, including mines and oil rigs
IP30, IP54 & IP56 protection options for harsh environments.
Panel mount Air Conditioners available for optimal cooling in outdoor or hot environments
3 & 4 wire options available
Choice of colour
Cabinets can be connected in parallel for larger capacities
480-690V options available on request
