Power Factor Correction
Cost-effective power factor correction for stable, low harmonic environments
What is Power Factor?
Power Factor (PF) is a measure of how efficiently electrical power is being used in your business. It's the ratio between Real Power (kW), which performs useful work (like running motors and lighting), and Apparent Power (kVA), which is the total power supplied to your facility.
Economic (ECO) vs Modular (MOD) Designs
ECO
- A cost-effective, compact solution option with all components mounted on the cabinet's backing plate. Optimised for cooling and reliability, it suits systems up to 400kVAr.
- Key benefits: lower upfront cost, smaller footprint options, easy installation, minimal maintenance.
MOD
- A premium, scalable system using interchangeable modules, ideal for capacities above 400kVAr. Offers superior flexibility, serviceability, and reactor segregation.
- Key benefits: scalable beyond 400kVAr, enhanced performance and safety, slide-out modules for easy servicing.
Select build
Max kVAr Rating

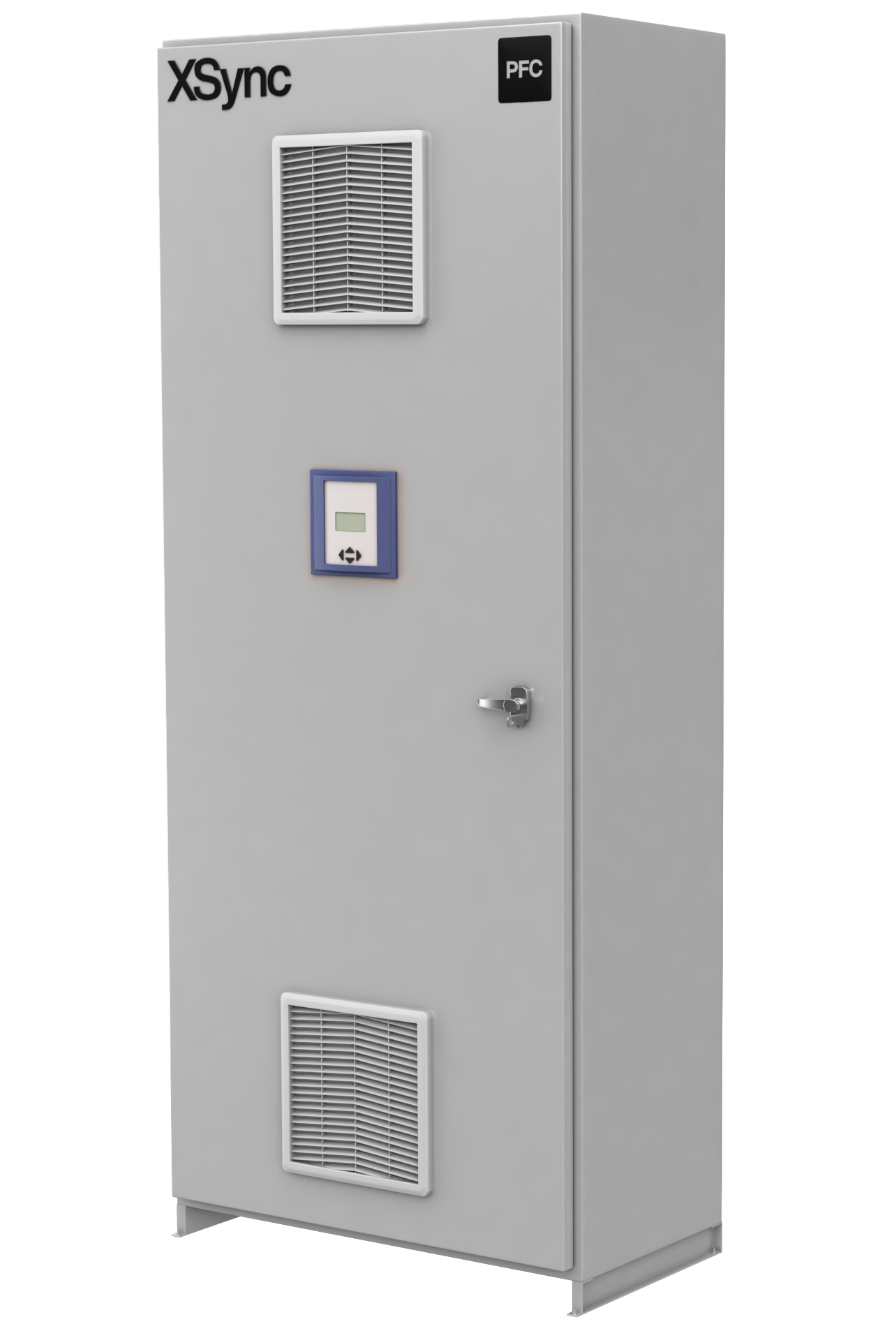

XSync PFC ECO 1880
1875x800x400
XECO1880F
100-200
4
1875x800x400
230-380kgs
6.75, 12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available On Request (WiFi and 4G)

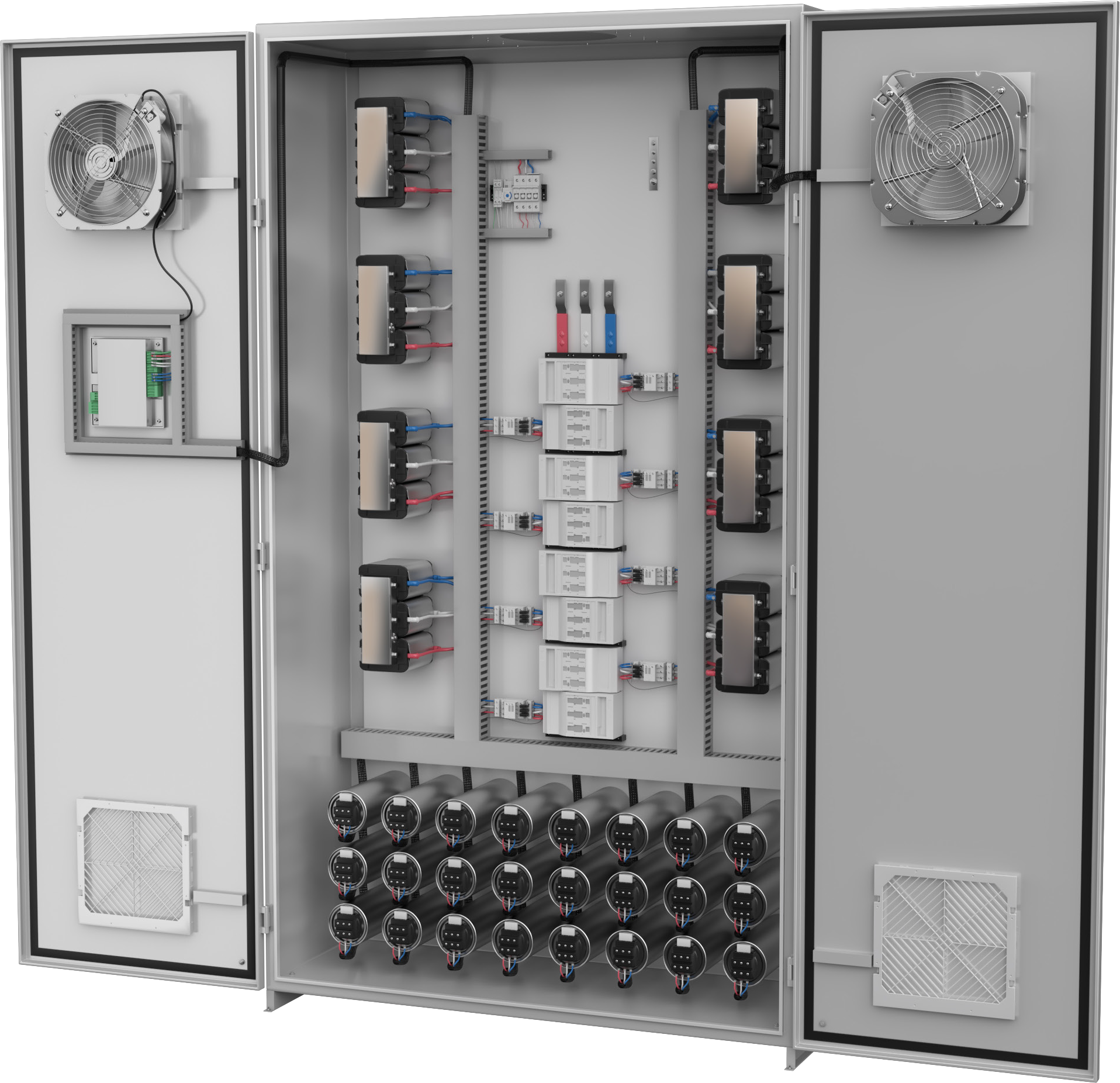

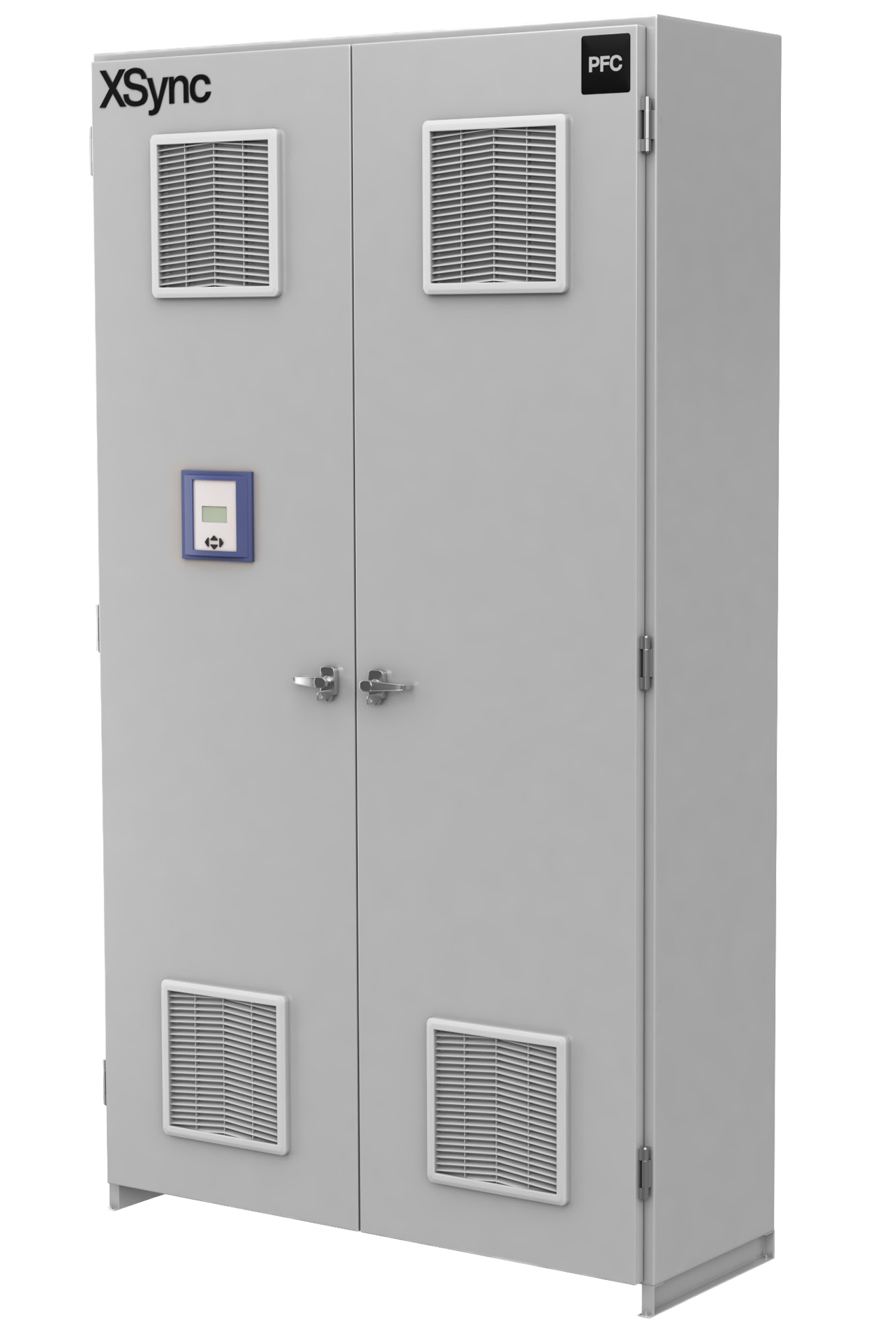

XSync PFC ECO 2012
2075x1200x400
XECO2012F
200-400
8
2075x1200x400
445-600kgs
6.75, 12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available On Request (WiFi and 4G)

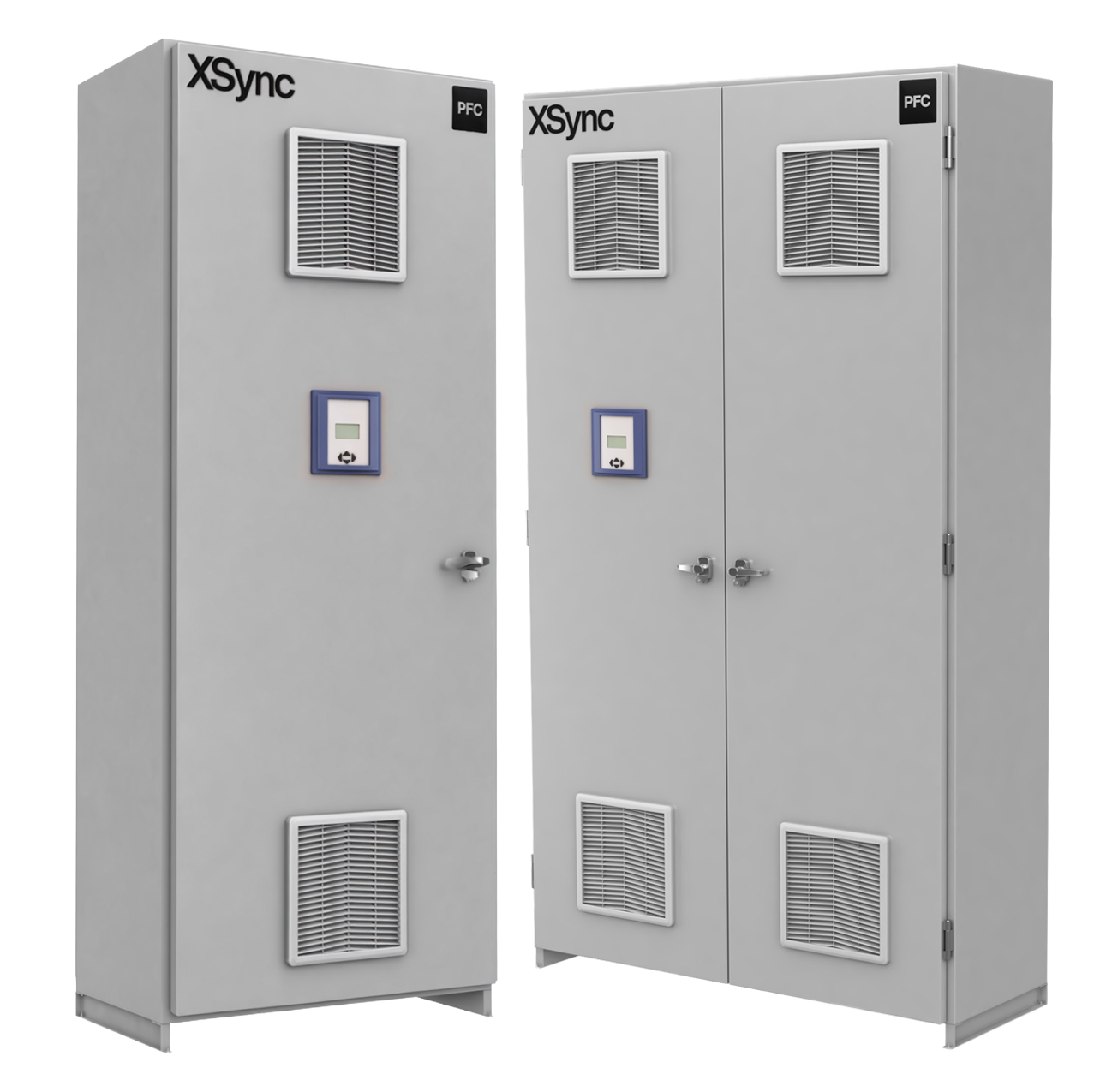

Power Factor Correction Economic (ECO) – Cost-Effective Efficiency (Any Combination of Steps Up to 400kVAr in a single cabinet)
- Simple yet effective design to ensure the most cost-effective pricing in the market.
- Customisable configurations to suit a wide range of applications.
- Compact, wall-mounted, or free-standing options available.
- Designed for easy installation and low-maintenance operation.
- Standard top and bottom cable entry options for installation flexibility.
- Available with direct connection, isolators, or circuit breakers.
- Energy-efficient design with just 6W of losses per 1 kVAr.
- Durable enclosures available in Aluminium or Stainless Steel IP54/IP56 for harsh environments.
- Optional panel-mounted air conditioners for optimal cooling in outdoor installations.
-
Precision control powered by the advanced CX Plus Controller:
- Real-time monitoring and compensation.
- True RMS measurements for accurate performance.
- Available with Modbus communication for remote access and integration into XSync’s cloud-based monitoring platform.
- Other custom options.
- Cabinets to be connected in parallel for larger capacities.
Max kVAr Rating

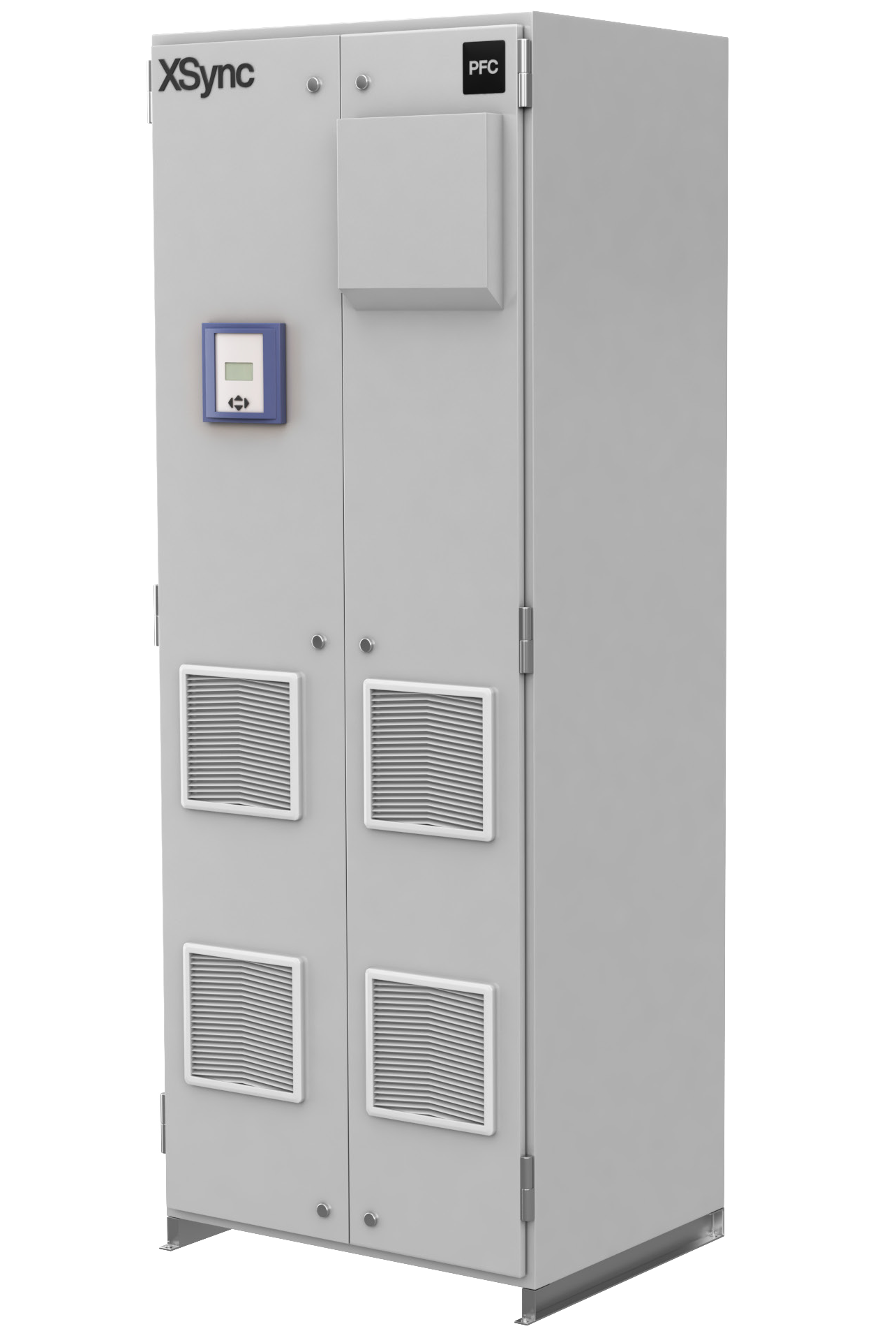

XSync PFC MOD 2080
2075 x 800 x 600
XMOD2080F
50-250
5
2075 x 800 x 600
330-550kgs
12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485 (optional)
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available on Request (WiFi and 4G)

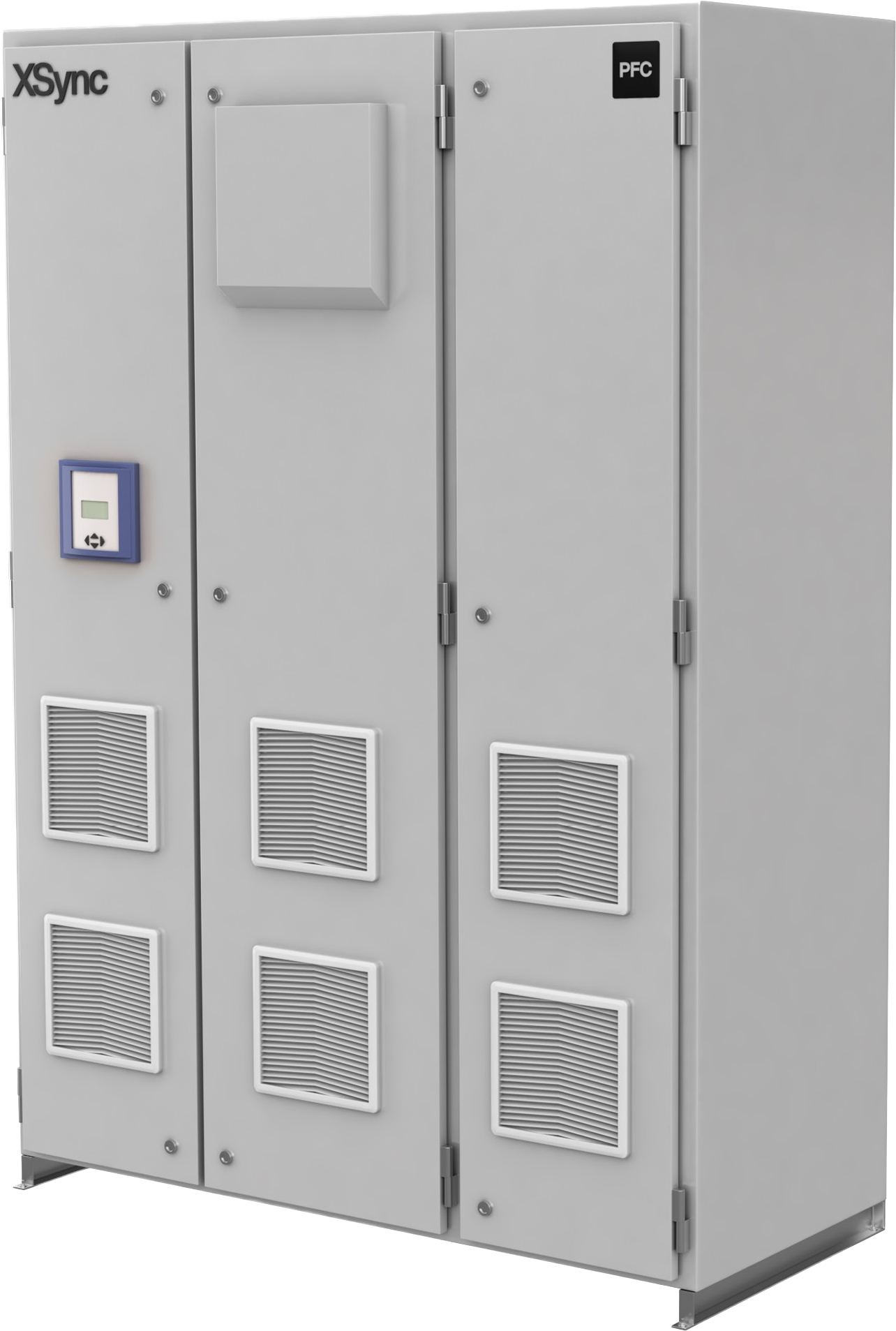

XSync PFC MOD 2014
2075 x 1400 x 600
XMOD2014F
250-550
11
2075 x 1400 x 600
650-990kgs
12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485 (optional)
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available on Request (WiFi and 4G)
XSync PFC MOD 2022
2075 x 2200 x 600
XMOD2022F
550-800
16
2075 x 2200 x 600
1230-1430kgs
12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485 (optional)
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available on Request (WiFi and 4G)
XSync PFC MOD 2028
2075 x 2800 x 600
XMOD2028F
800-1000
20
2075 x 2800 x 600
1550-1700kgs
12.5, 25, 50
Free Standing
400V +/- 20%
Optional
Iskra 525 Volt
Iskra Capacitor Switching
Beluk 4 Quadrant
Included
Mangoldt 189Hz Detuned (Other Frequencies Available for High Harmonic Sites)
NH00 Bus Bar Mounted
Multiple Options Available
2mm Mild Steel – Aluminium & Stainless-Steel Options Available
Indoor, with Outdoor Options Available
Top and Bottom Options Available
Standard IP30 with 54 & 56 Options Available
6 Watts per 1kVAr
Modbus RTU over RS485 (optional)
70 db(A)
3-Year Standard Warranty (Longer Warranties Available on Request)
Cloud Based Monitoring Available on Request (WiFi and 4G)

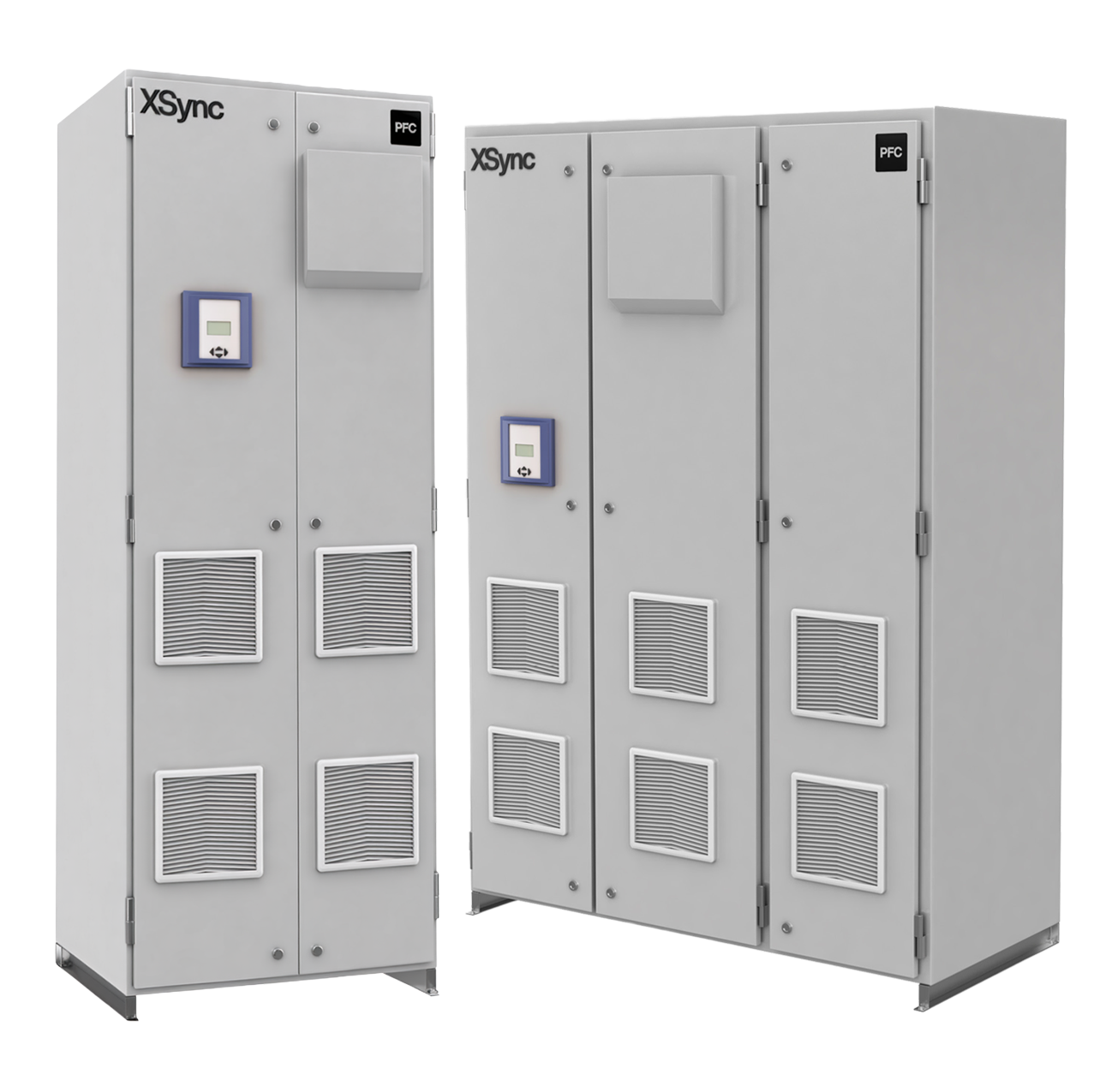

Power Factor Correction Modular (MOD) Premium Modular Design (up to 1000kVAr in a single cabinet)
- Fully modular design with segregated compartments for superior cooling and reliability.
- Customisable, free-standing configurations to suit a wide range of applications.
- Designed for easy installation and low-maintenance operation.
- Flexible cable entry options and a wide range of colour choices to match project requirements.
- Available with direct connection, isolators, or circuit breakers.
- Energy-efficient design delivering just 6W of losses per 1 kVAr.
- Durable Stainless Steel IP54/IP56 enclosures for demanding indoor and outdoor industrial environments.
- Large exhaust fans for effective heat management.
- Optional panel-mounted air conditioners for optimal cooling in outdoor installations.
-
Precision control powered by the advanced CX Plus Controller:
- Real-time monitoring and compensation.
- True RMS measurements for accurate performance.
- Available with Modbus communication for remote access and integration into XSync’s cloud-based monitoring platform.
- Other custom options available.
- Cabinets to be connected in parallel for larger capacities.
How our PFC's Work
XSync Power Factor Correction (PFC) works by improving the efficiency of how electrical power is used in a system.
Many electrical devices, especially motors and power transformers, draw not just active power (which does useful work) but also reactive power (which doesn't do useful work but is needed to maintain voltage levels). This results in a lower power factor and higher demand charges from energy providers.
Our XSync customised PFC systems correct this by adding a combination of capacitors and reactors into the electrical network, which supply the necessary reactive power locally. This reduces the amount of reactive power drawn from the grid, brings the power factor closer to unity (1.0), lowers the total current flow, reduces kilowatt losses (energy waste), and ultimately leads to lower energy costs and improved energy efficiency and system capacity.
Why Choose XSync PFC?
Australian-Made Quality: Proudly engineered and manufactured in Australia, built tough for local conditions.
Lowers electricity bills and avoids costly penalties from energy providers.
Energy Efficiency: Advanced designs that minimise energy losses, reducing your electricity bills and carbon footprint.
Built for Harsh Environments: IP54/IP56 enclosures and optional air conditioning for reliable outdoor performance.
Customisable Solutions: Tailored designs to meet the specific requirements of your site, whether small commercial or large industrial.
Premium Components: Built for reliability, featuring Iskra KNK-3053 Series, Mangoldt iron-core reactors, Iskra capacitor duty contactors.
Scalable & Flexible: Options from 12.5kVAr to 1000kVAr, available in wall-mounted, floor-standing, and modular configurations.
Real-Time Control: Compatible with XSync Cloud for monitoring and control.
